A-A-52151 Belt, Seat, Passenger Type, Automotive, Commercial VehiclesThis CID covers requirements for automotive passenger type seat belts, hereinafter called quot;seat beltsquot;. The seat belts are intended for use in automotive commercial vehicles.

Pages 1 - 2 - 3 - 4 - 5

A-A-52151A

3.1.1  Dissimilar metals.  Dissimilar metals shall not be used in extremely close contact or having direct contact with each other unless protected against galvanic corrosion.

3.2  Design and construction.  The seat belts shall be designed and constructed in accordance with figures 1 and 2.

NOTE:1.  Dimensions are in inches.

2.  max = maximum, min = minimum.

3.  Bolt - size 7/16, grade 5, 2 required.

4.  Nut - size 7/16, self-locking, 2 required.

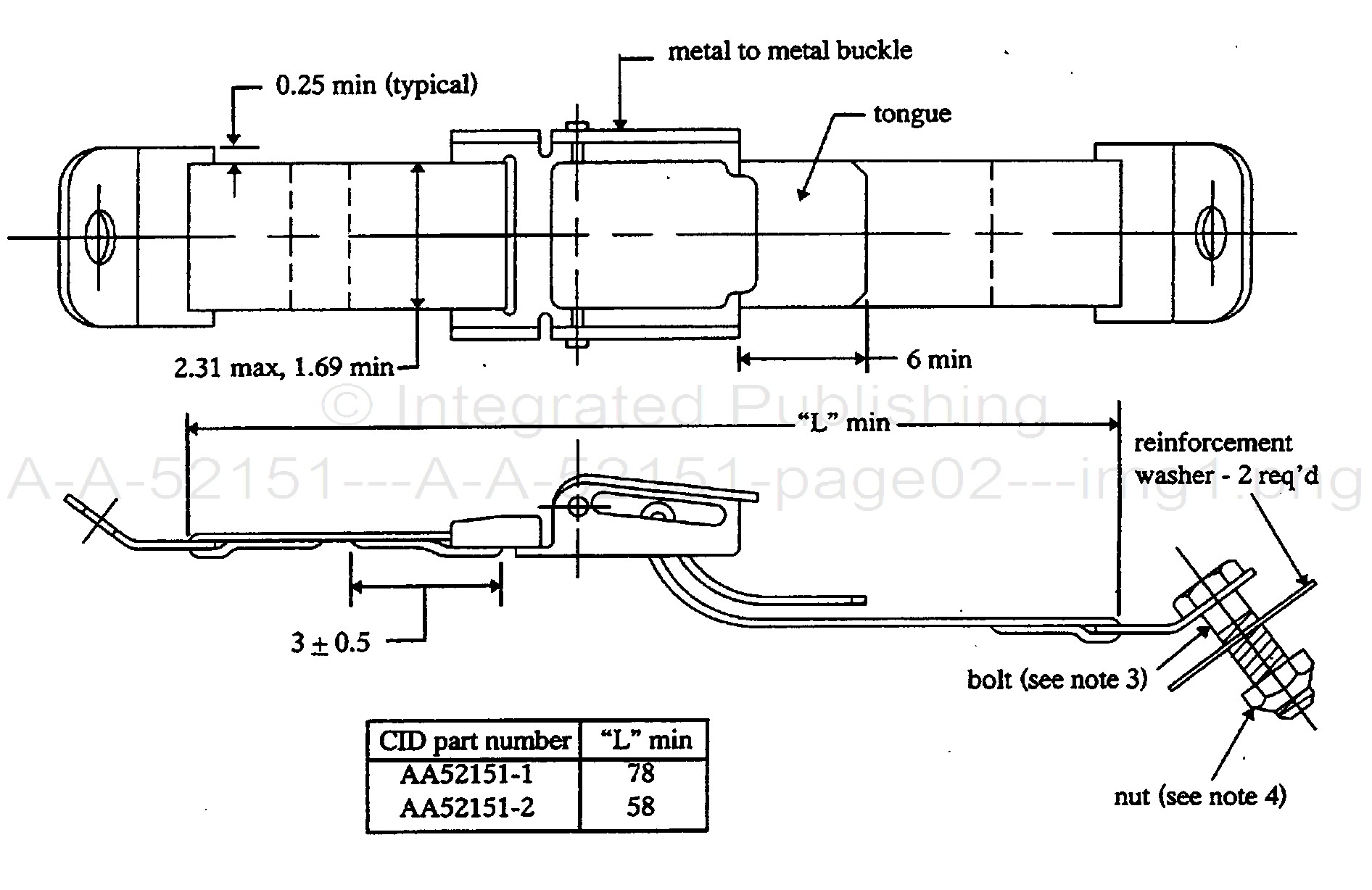

FIGURE 1.  Type I - bolt-on seat belt configuration.

2
