A-A-52163B
PIN number |
A52163-A1 |
|
Number of steps |
4 |
|
Width, inside rails |
W1 |
479 mm (18.9 in) |
Width, outside rails |
W2 |
543 mm (21.4 in) |
First step rise |
R1 |
102 mm (4 in) |
Typical step rise |
R2 |
254 mm (10 in) |
Vertical rise, total |
R3 |
921 mm (36.2 in) |
Angle with ground Material |
A |
45 degrees (0) Steel |

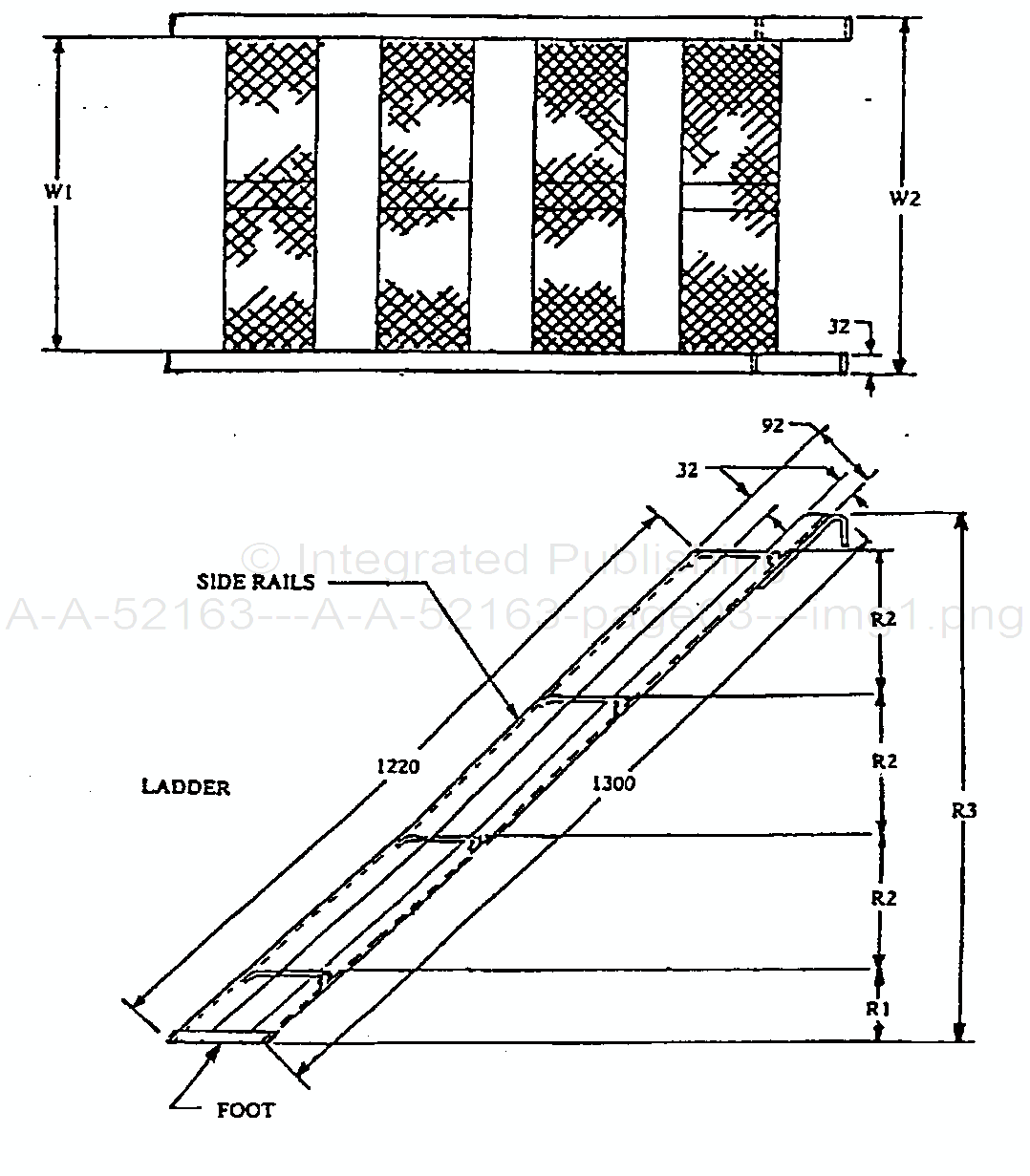

FIGURE 1. Ladder assembly, type A.
