A-A-52163B
PIN number |
A52163-C1 |
|
Number of steps |
3 |
|
Width, inside rails |
W1 |
400 mm (15.8 in) |
Width, outside rails |
W2 |
470 mm (18.5 in) |
Hook centers |
H |
435 mm (17.1 in) |
Step depth |
D |
184 mm (7.25 in) |
First step rise |
R1 |
293 mm (11.5 in) |
Typical step rise |
R2 |
280 mm (11 in) |
Vertical rise, total |
R3 |
853 mm (33.6 in) |
Angle with ground Material |
A |
52° Aluminum alloy |

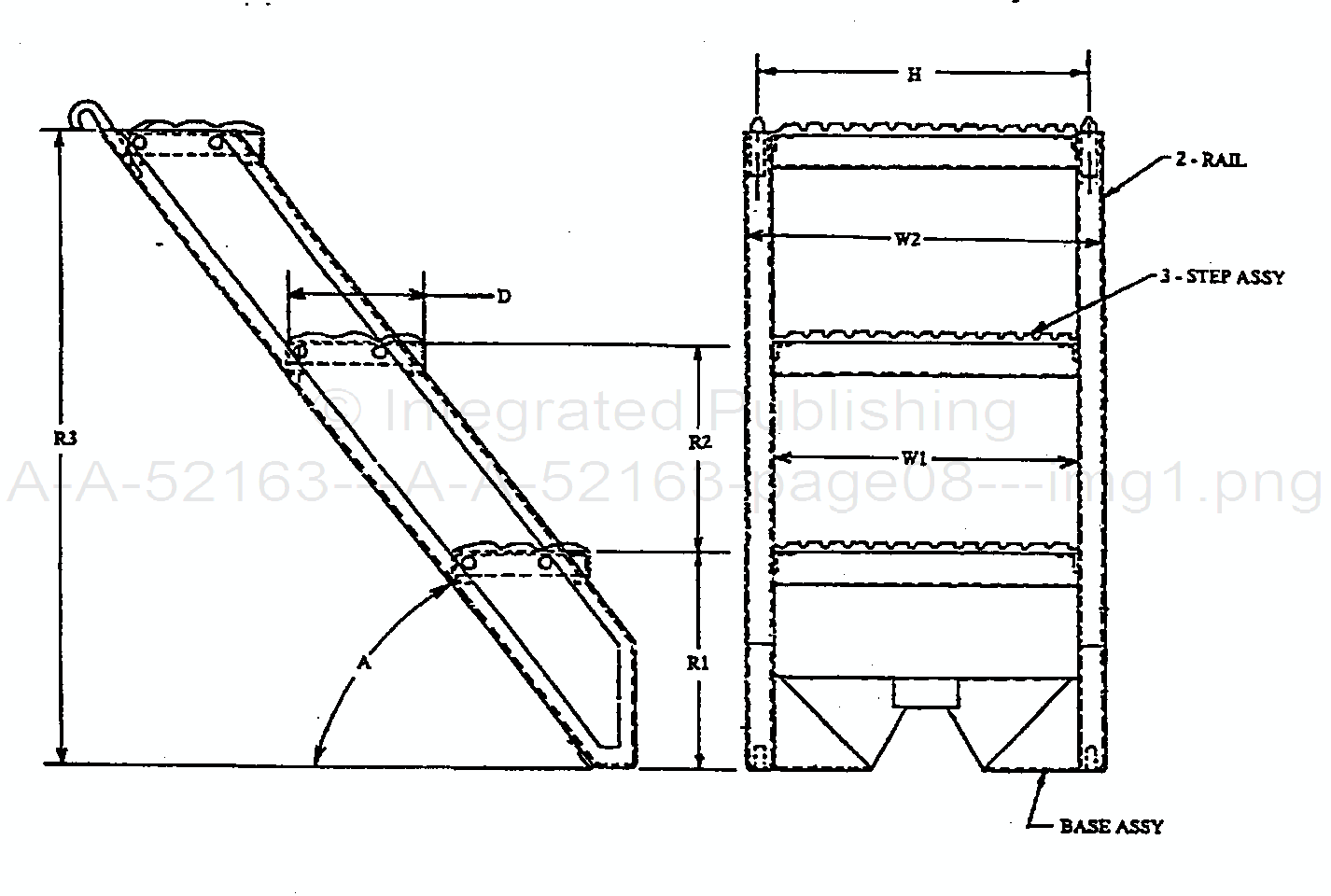

FIGURE 3. Ladder assembly, type C.
