A-A-52163 Ladders, Vehicle-BoardingThis CID covers nine different types of portable, metal, step-ladders hereinafter referred to as ladders for use by personnel in boarding vehicles.

Pages 1 - 2 - 3 - 4 - 5 - 6 - 7 - 8 - 9 - 10 - 11 - 12 - 13 - 14 - 15 - 16 - 17 - 18 - 19 - 20 - 21 - 22 - 23 - 24 - 25 - 26

PIN number

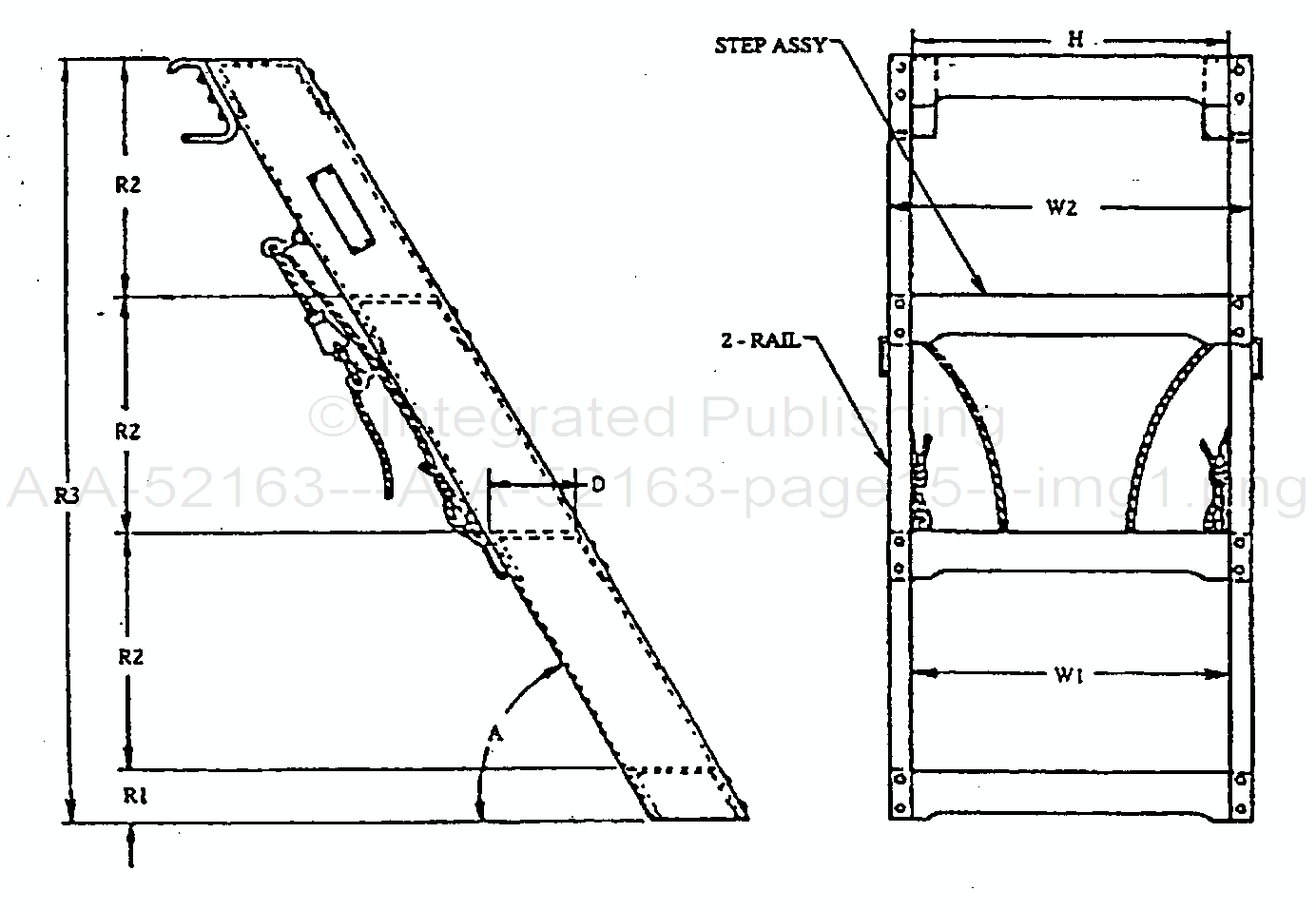

Number of steps Width, inside rails Width, outside rails Hook centers

Step depth First step rise Typical step rise Vertical rise, total Angle with ground Material

W1

W2

H D R1

R2

R3

A

A52163-F1

4

365 mm (14.4 in)

416 mm (16.4 in)

365 mm (14.4 in)

109 mm (4.28 in)

46.8 mm (1.84 in)

280 mm (11 in)

883 mm (34.8 in)

60°

Aluminum

A52163-F2

6

365 mm (14.4 in)

416 mm (16.4 in)

365 mm (14.4 in)

109 mm (4.28 in)

46.8 mm (1.84 in)

280 mm (11 in)

1370 mm (54 in)

60°

Aluminum
