A-A-52432B
NOTES:
1. Ball and socket assembly shall be located in the center of the mirror back for maximum stability.
2. Ball and socket assembly may be stud or bolt type.
3. Ball and socket assembly shall be permanently tensioned to hold the mirror in its required position yet still allow for tool free adjustment.
4. Basic mirror assembly fastener requirements shall be as specified in table I.
5. Basic mirror assembly shall include one (1) adapter assembly as specified in figure 6.

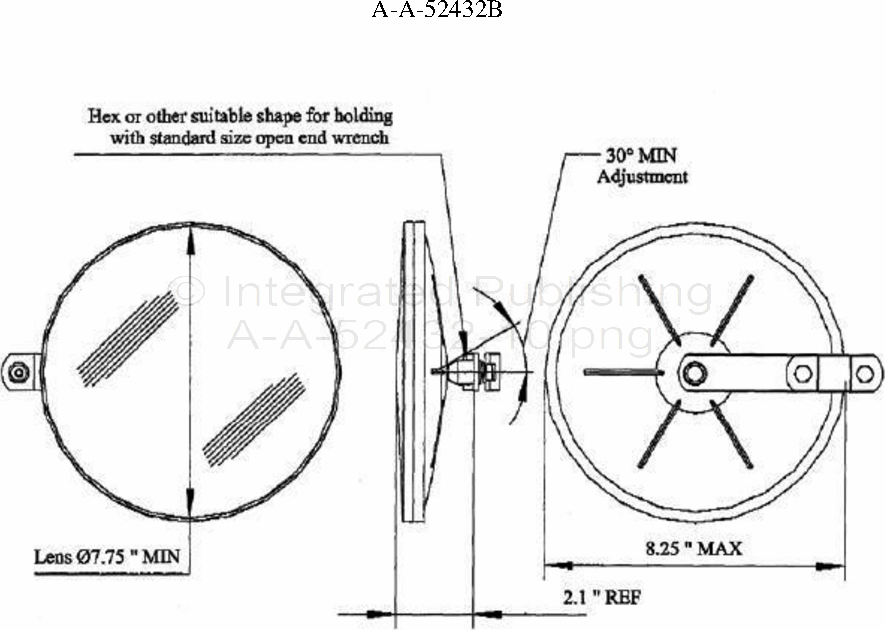

FIGURE 5. Spot mirror (Type V).
