A-A-52432B
NOTES:
1. The upper and lower mounting holes with threaded metallic inserts, the threaded length of the threaded metallic inserts, the mounting hole depth, and the orientation of the flat/planar lens shall be as specified in figure 2.
2. The orientation of the convex lens shall be 3.5° ± 0.5° downward on the horizontal axis and 0° ± 0.5° right on the vertical axis in accordance to the surface of the flat/planar lens.
3. “Objects in Mirror are Closer Than They Appear” shall be permanently and indelibly market at the lower edge of the convex mirror’s reflective surface in letters not less than 0.19” nor more than .25” high.
4. Mirror assembly fastener and spacer requirements shall be as specified in table II.
5. Mirror assembly shall include two (2) adapters as specified in figure 7.

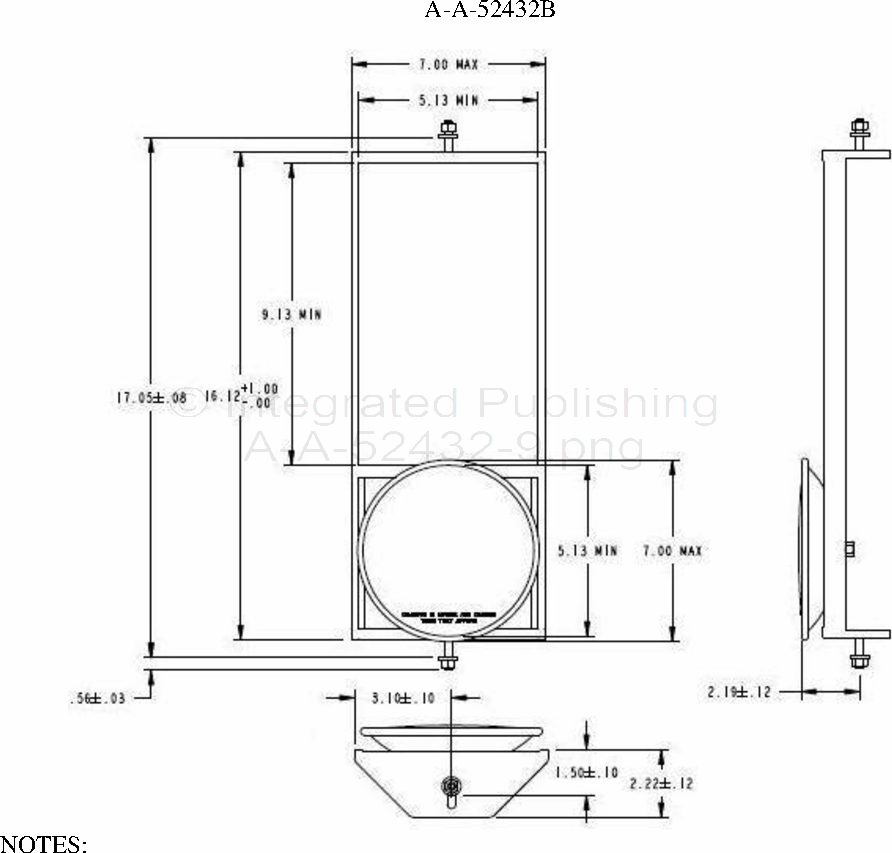

FIGURE 4. Universal combination mirror assembly (type IV).
