A-A-52432B
NOTES:
1. Right hand mirror is shown. Left hand mirror is identical except of opposite hand with respect to vertical axis.
2. The upper and lower mounting holes with threaded metallic inserts, the threaded length of the threaded metallic inserts, the mounting hole depth, and the orientation of the flat/planar lens shall be as specified in figure 2.
3. The orientation of the convex lens shall be 3.5° ± 0.5° downward on the horizontal axis and 5° ± 0.5° right on the vertical axis (for right hand lens) or 5° ± 0.5° left on the vertical axis (for left hand lens) in accordance to the surface of the flat/planar lens.
4. “Objects in Mirror are Closer Than They Appear” shall be permanently and indelibly market at the lower edge of the convex mirror’s reflective surface in letters not less than 0.19” nor more than .25” high.
5. Mirror assembly fastener and spacer requirements shall be as specified in table II.
6. Mirror assembly shall include two (2) adapters as specified in figure 7.

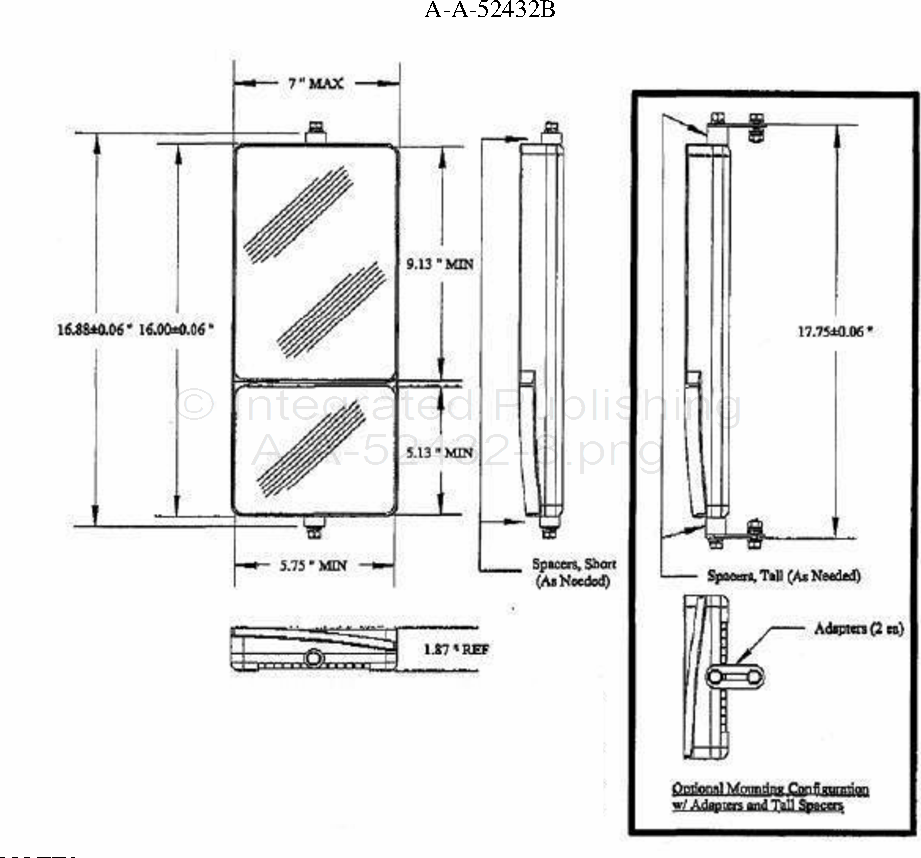

FIGURE 3. Combination mirror assembly (type III).
