A-A-52432B
NOTES:
1. Ball and socket assembly shall be in the center of the mirror for maximum stability.
2. Ball and socket assembly may be stud or bolt type configuration.
3. Ball and socket assembly shall be permanently tensioned to hold the mirror in its required position yet still allow for tool free adjustment.
4. Mirror fastener requirements shall be as specified in table I.

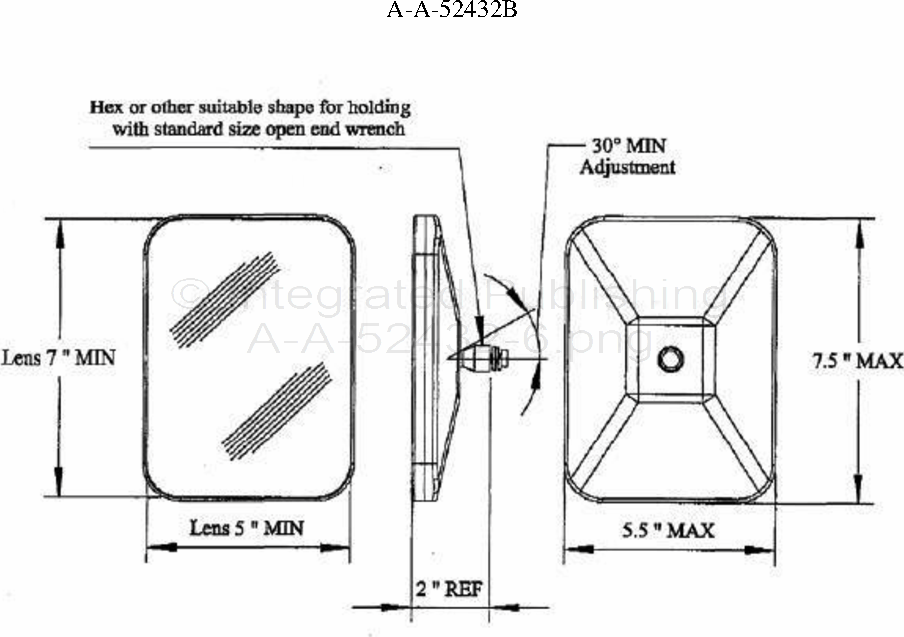

FIGURE 1. Mirror assembly, rearview (type I).
