A-A-52503B
NOTES: 1. Dimensions are in inches. Tolerances are ±.03 on decimals and ±1 on angles unless otherwise specified (see 7.3).
2. All burrs and sharp edges should be removed.
3. This figure is not intended to limit construction or design solutions.
FIGURE 1. Assembly design and construction - Continued.
NOTES: 1. Dimensions are in inches. Tolerances are ±.03 on decimals and ±1 on angles unless otherwise specified (see 7.3).
2. All burrs and sharp edges should be removed.
3. The internal bend radii for the hanger is .06 (R) inches, typical.
4. This figure is not intended to limit construction or design solutions.

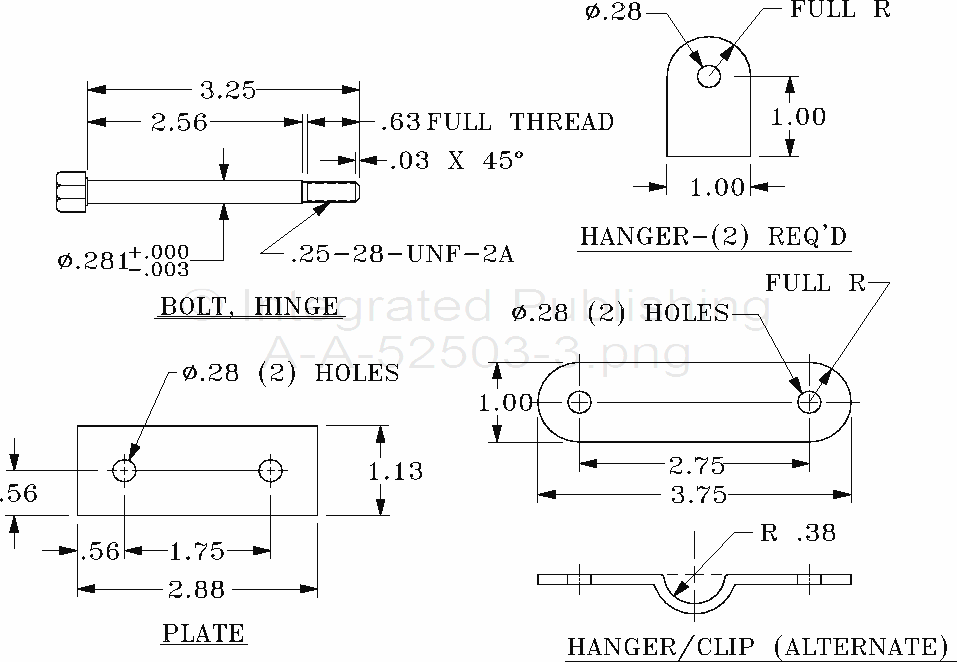

FIGURE 2. Hanger and plate(s) design and configuration.
3.1.1 Design interface. The assembly shall fully interface with the A-A-52432 (mirror assembly). The assembly shall conform to the envelope, interface, and mounting dimensions as shown in figures 1 and 2.
3.2 Corrosion resistance. The assembly shall show no evidence of corrosion when tested in accordance with ASTM B117.
