MIL-STD-209K

This figure depicts the approximate location of the

six different types of provisions covered in this standard

- Lifting Provision

- Equipment Tiedown Provision

- Multipurpose Provision

- Cargo Tiedown Provision

- Large Cargo Tiedown Provision

- Supplemental Air Transport Tiedown Provision

Figure 1. Approximate Location of the Six Different Types of Provisions.

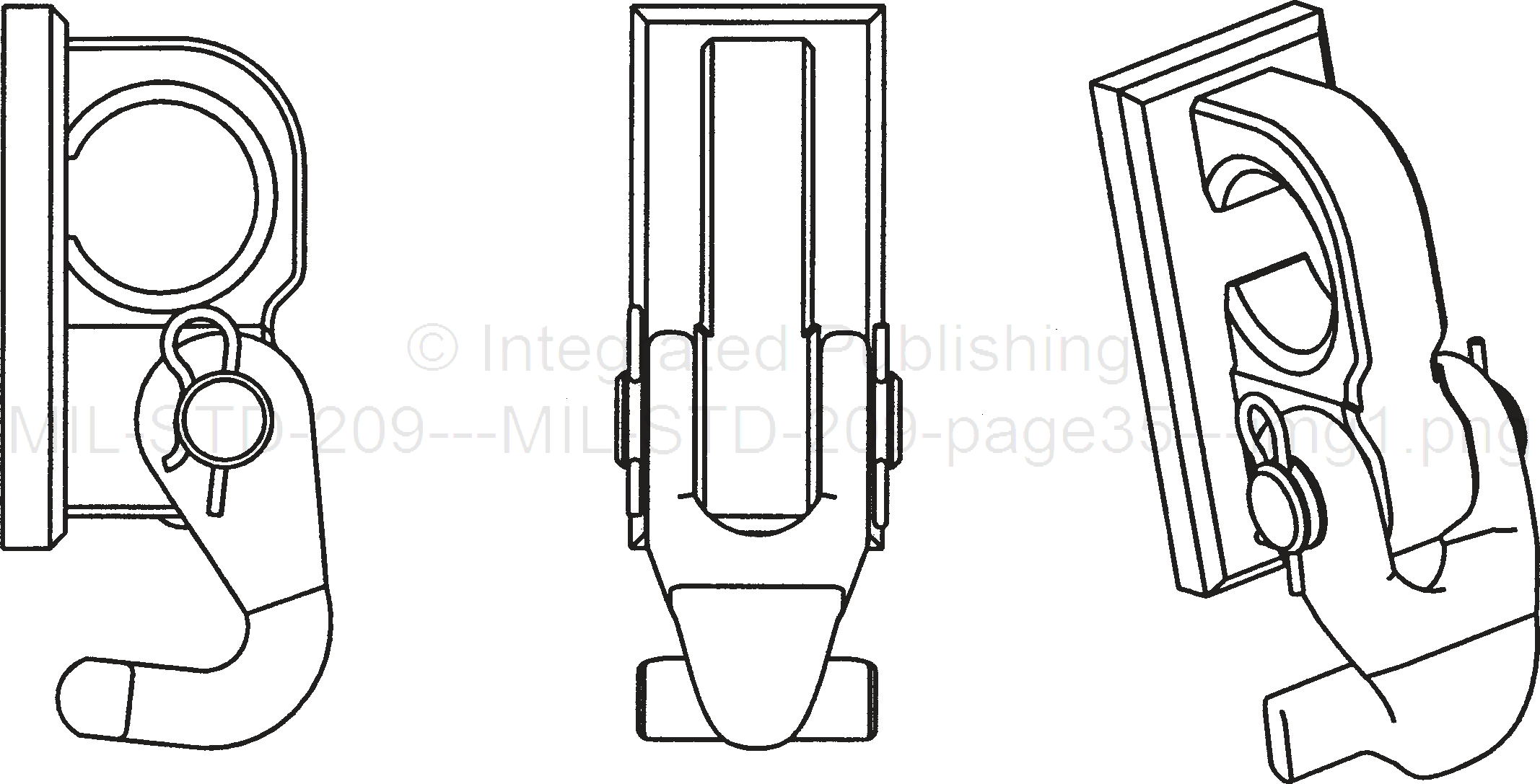

Figure 2. Example of a Nonremovable, Dual-Purpose Provision.
