MIL-STD-209K APPENDIX B

B.5.1.2 Determine h

and S (these are constant for all slings).

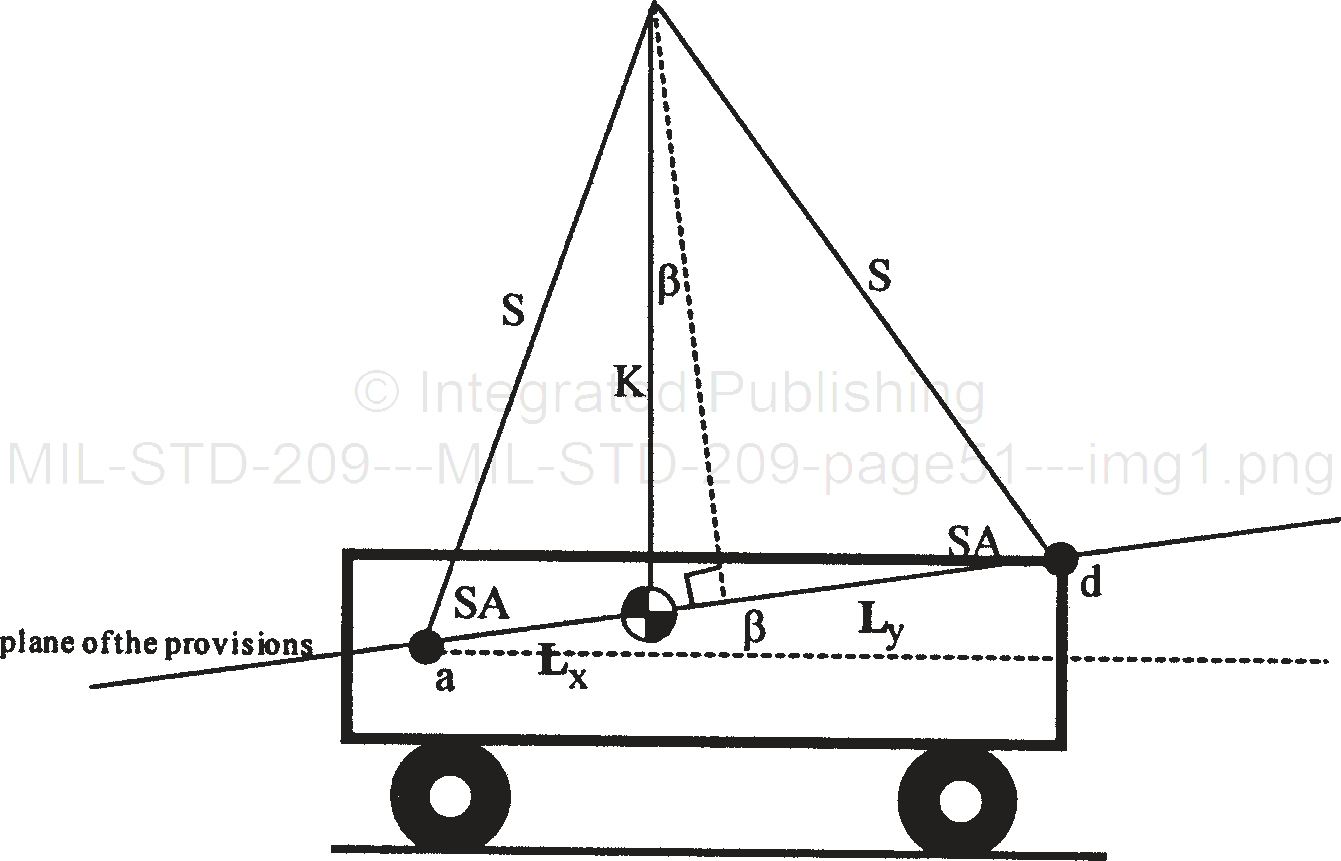

Elevation view of the plane of the provisions

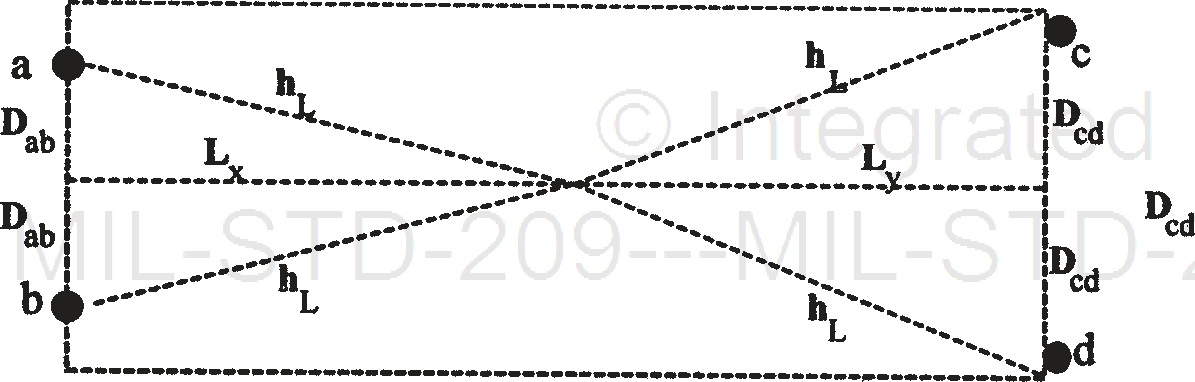

Plan view of the plane of the provisions

D = (D +D )/2 = (16+17)/2 = 16.5 inches

ab a b

= (D +D

)/2 = (34+33)/2 = 33.5 inches

To solve for h , we have three equations and three unknowns.

hL = √Dab

+ L 2

hL = √Dcd + L

x xy

By substituting the third equation into the first equation, we can solve for L .
